When I deployed my methane sensor at the Arctic Coast, it was clear that wind plays a huge factor in the gas concentration measured. The commercial cup-and-arrow wind sensor we deployed was expensive, heavy, and very delicate. I decided to create a sonar-based compact wind sensor with the Beaglebone Black single board computer using assembly to program ultra-high frequency data capture.
Operating Principle

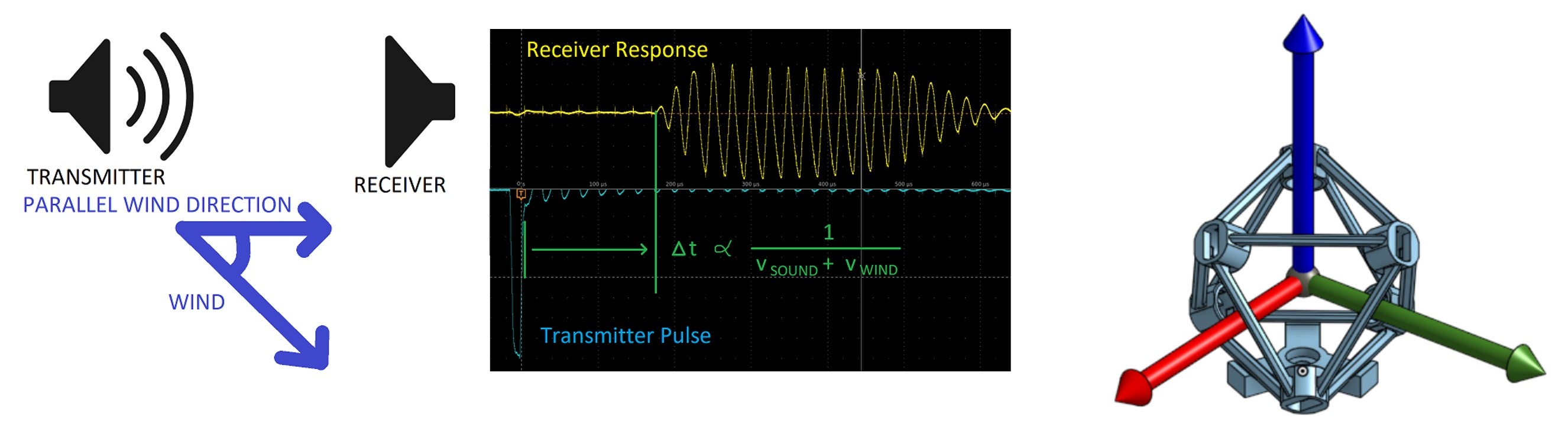

The sonic wind sensor features 3 orthogonal pairs of opposing sonar transceivers where the transmitters are periodically pulsed and the travel time to the receivers are measured. This time is equal to the distance between the transceivers divided by the sum of the speed of sound and the parallel component of the wind. Accurately measuring this time means 3 orthogonal components of wind speed can be calculated.
Mechatronics

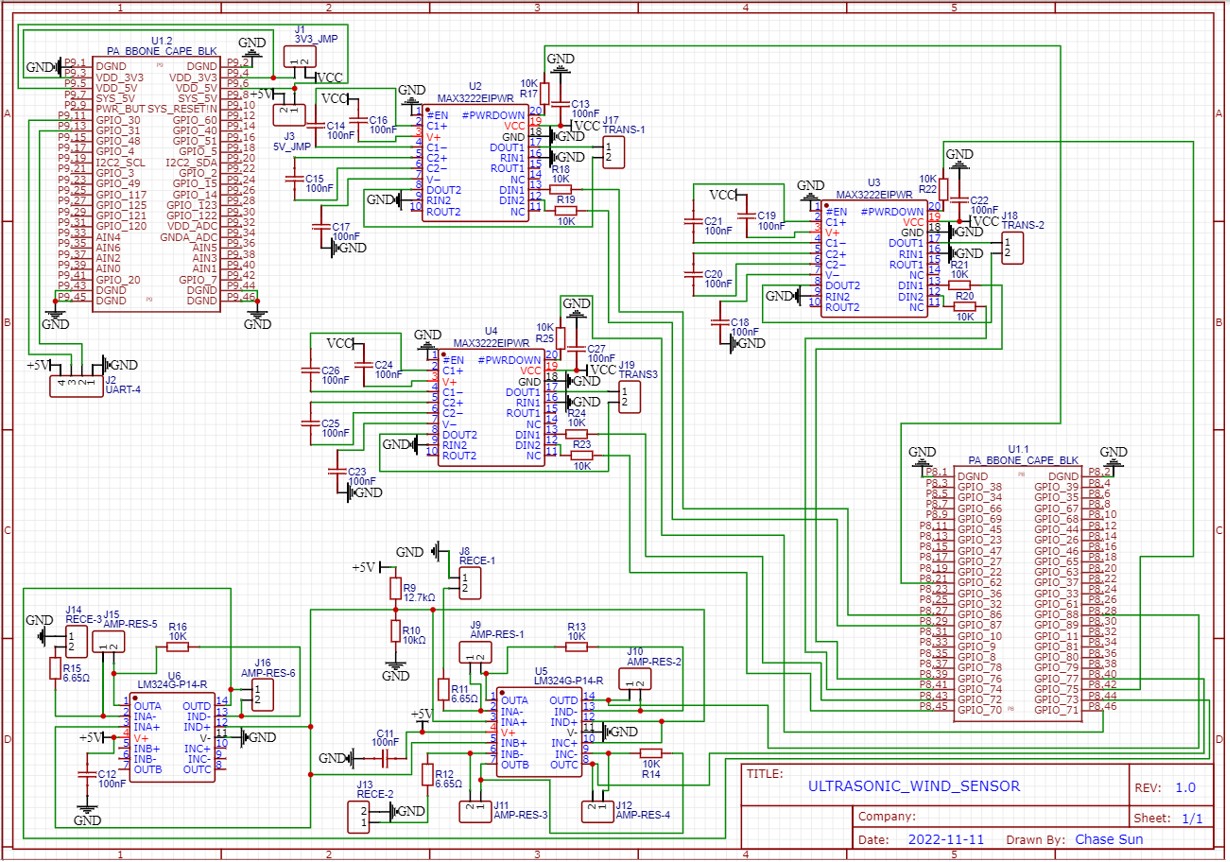

The Beaglebone black SBC is used since it can handle ultra-fast real time operation with assembly. A custom capeboard is used to amplify high-impedance digital signals from the BBB to +-10V low impedance output to power the piezo-electric speakers. The signals from receivers are then read as digital inputs by the BBB with constant polling to precisely calculate time required for the sound to travel. The circuit, along with the high-speed assembly code, allows the sensor to measure 3D wind at 1000Hz, compared to a traditional wind cup sensor which can only measure 2D wind at ~1Hz.
Deployment

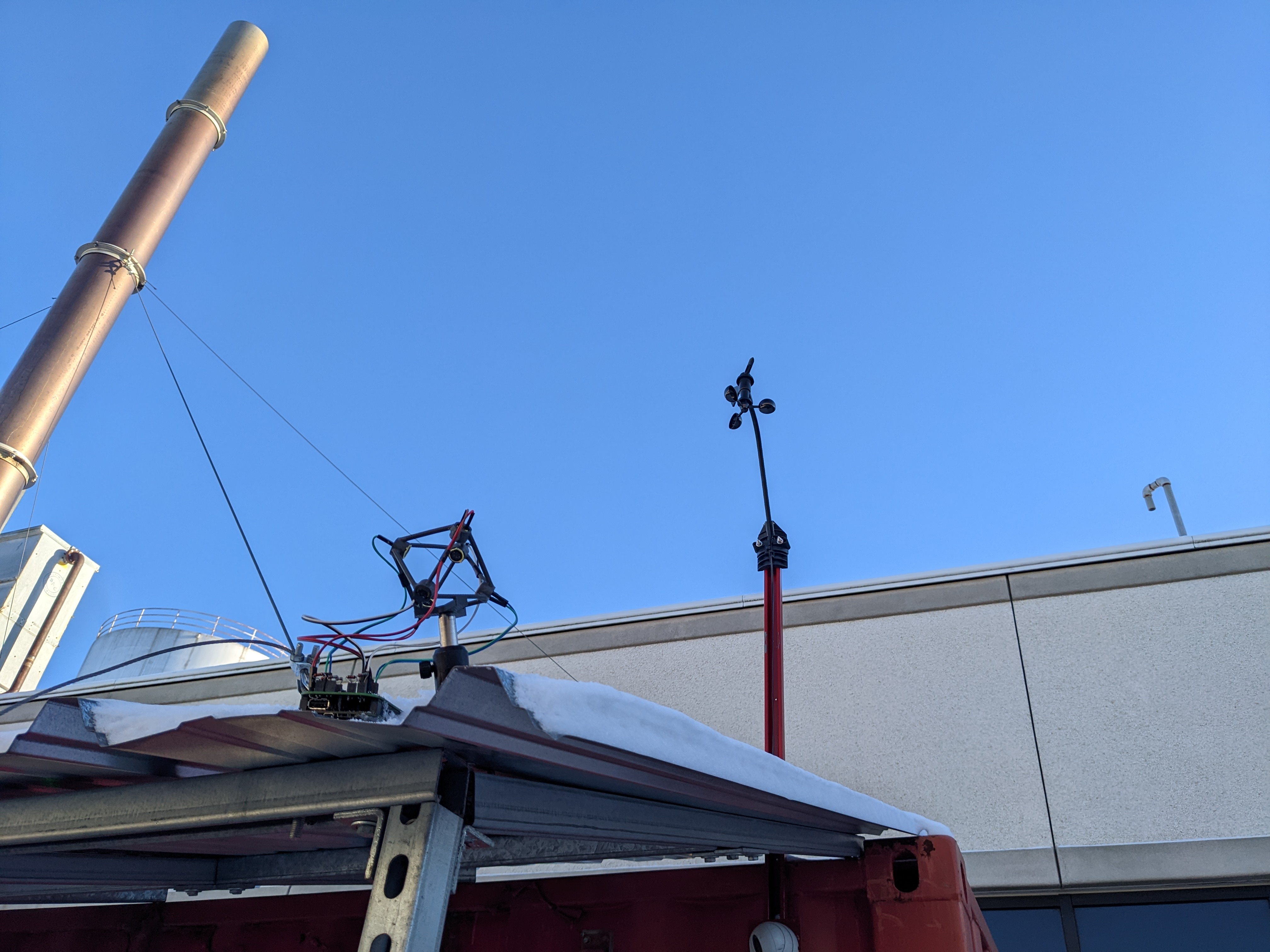

Here the ultrasonic sensor is deployed along with a traditional wind cup sensor to measure the long term stability of the sensor.
